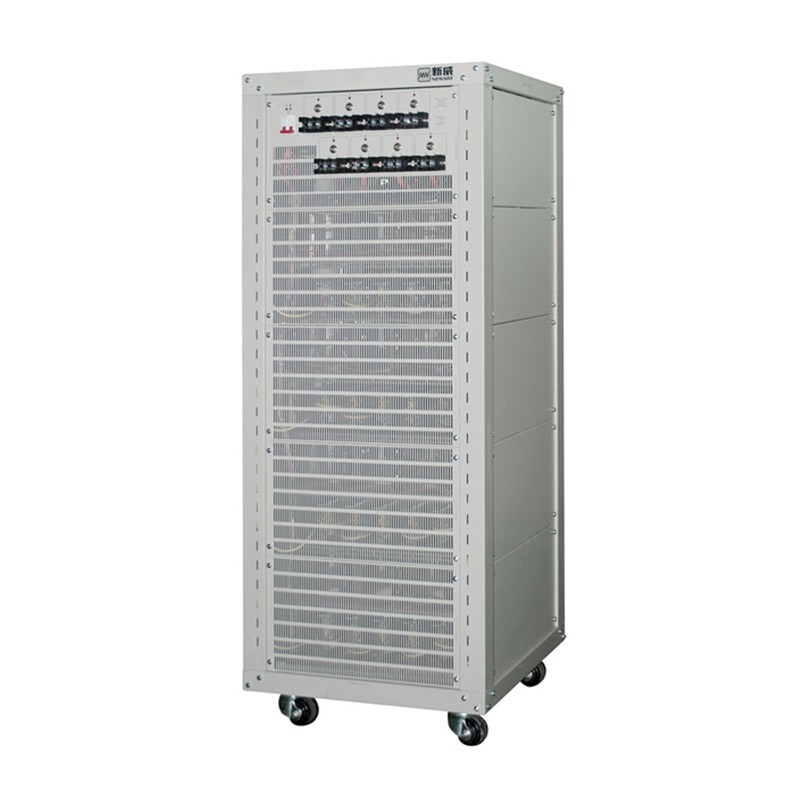

CT-4008-10V30A

Voltage CV Output Range: 50mV~10V
Min Discharge Voltage: 0V
Current Output Range: 150mA-30A
Accuracy: ± 0.1% of FS
Current response: Max rising time is 20ms (10%~90%FS)
Data Record Frequency: 10Hz
Channels Per Unit: 8
Dimensions(W*D*H)(mm): 18U(19”),600*600*1000

PDF
Product Description:

The main parameters

Specifications
Model: BTS4000-10V30A SN: CT-4008-10V30A-NTFA
Items Values
Voltage CV output range 0.05V~10V
Min discharge voltage 0V
Accuracy ± 0.1% of FS
Current Output range/channel 0.15A~30A
Accuracy ± 0.1% of FS
CV cut-off current 0.15A
Current response time Max rising time: 20ms (10%FS~90%FS)
Data record Frequency 10Hz
Charge modes CC,CV,CCCV,CP
Discharge modes CC,CP,CR,CV
Min pulse width 500ms
DCIR Test Supported
Channels control mode Independent control
Channels per unit 8
Dimensions(W*D*H)(mm) 18U(19”),600*600*1000


Product Highlights

High Accuracy: The Accuracy of CT-4008-10V30A-NTFA is 0.1%.
Min Discharge Voltage: The common min discharge voltage of CT-4008-10V30A-NTFA is 0V.
Data Record Frequency: The data record frequency of CT-4008-10V30A-NTFA is 10Hz.
Protection: To make the safest products! Users, data and the testers are safe!
Channels feature: The channel controls independently. Kelvin connection.
Life Cycle Test: CT-4008-10V30A-NTFA can do the cycle life test.
DCIR Test: CT-4008-10V30A-NTFA can do the DCIR test.
Formation, Aging & Grading: CT-4008-10V30A-NTFA can do formation, aging and grading.
dQ/dV Curve: CT-4008-10V30A-NTFA can do dQ/dV curve.
C-Rate Test: CT-4008-10V30A-NTFA can do C-Rate test.
HPPC Test: CT-4008-10V30A-NTFA can do HPPC test.
PITT/GITT Test: CT-4008-10V30A-NTFA can do PITT/GITT test.
Pulse Test: CT-4008-10V30A-NTFA can do pulse test.


If you want to know more about CT-4008-10V30A-NTFA, please contact me: padda@newaretesters.com
