Voltage CV Output Range: 25mV~5V Min Discharge Voltage: 1.5V Current Output Range: 0.5mA-0.1A; 0.1A-0.5A; 0.5A-1A Accuracy: ± 0.05% of FS Current response: Max rising time is 1ms (10%FS~90%FS) Data Record Frequency: 10Hz Channels Per Unit: 8 Dimensions（W*D*H）(mm): 1U(19″), 483*404*130

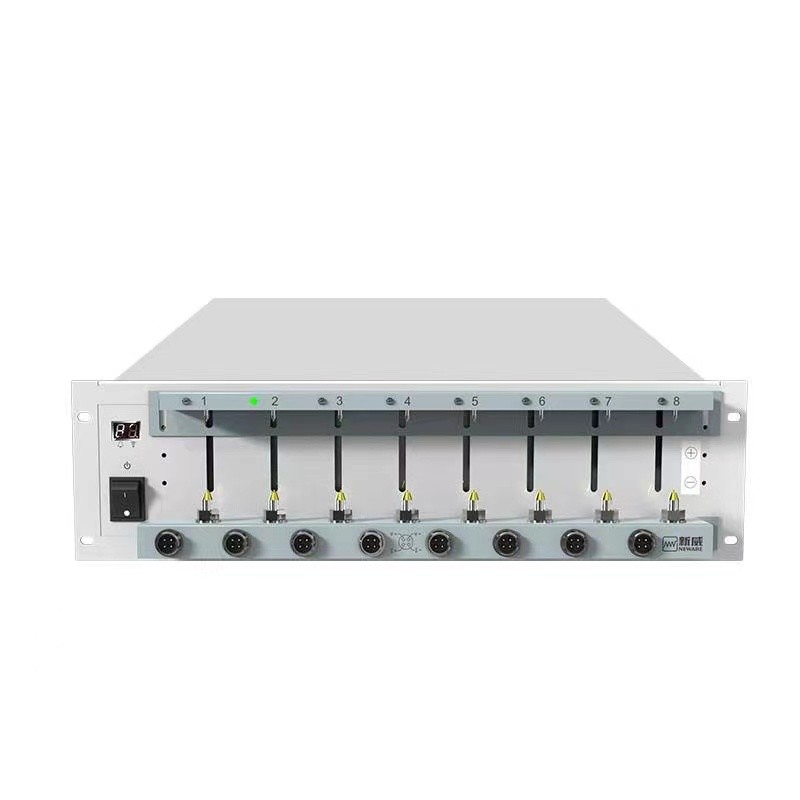

Neware CT-4008Tn-5V1A is mainly for TWS(True Wireless Stereo). With the advancement of science and technology, the use of wearable devices is becoming more and more widespread. Especially in recent years, the sales of Bluetooth headsets have doubled. We have specially developed this equipment to meet your needs.
Neware CT-4008Tn-5V1A has 3 output ranges: 0.1A(0.5mA-0.1A) , 0.5A(0.1A-0.5A) and 1A(0.5A-1A) with accuracy 0.05%. The lower range is able to output current low as 0.5mA, which can tell the subtle difference of various materials such electrodes, electrolyte, sepatator, etc.
Neware CT-4008Tn-5V1A needs to be used with a middle-machine. It likes our brain and it has 700M+ storage capacity. Then it offers you the off-line operation mode. For instance: If you want to take away the computer for a while, you don’t need to pause the test. Then the data will be stored in the middle-machine temporarily. The data will be automatically uploaded to the computer after the computer is reconnected again.
