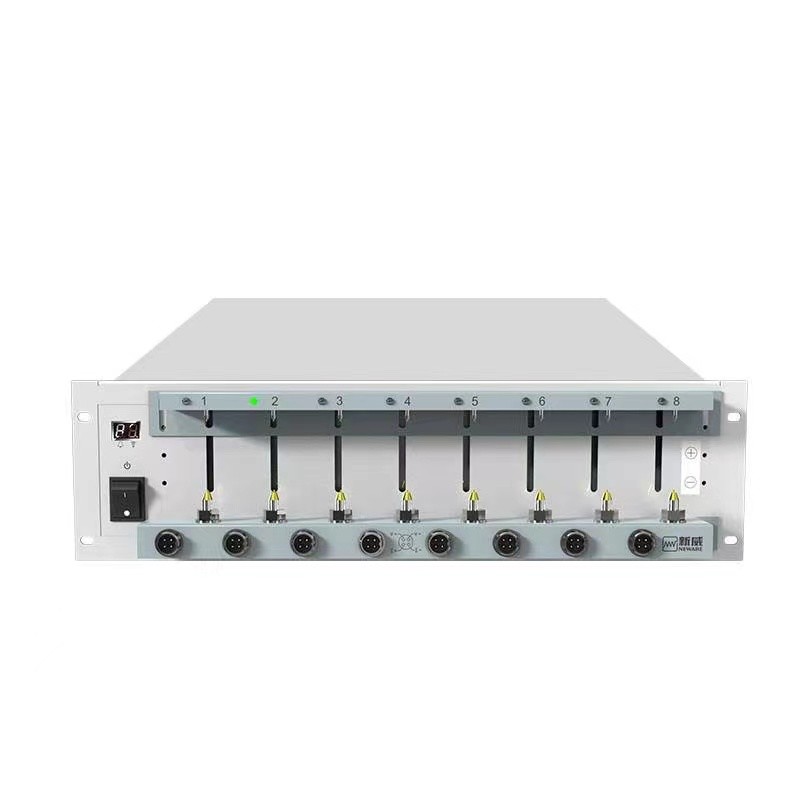

Voltage CV Output Range: 50mV~10V Min Discharge Voltage: 2V Current Output Range: 15mA-3A Accuracy: ± 0.05% of FS Current response: Max rising time is 1ms (10%~90%FS) Data Record Frequency: 10Hz Channels Per Unit: 8 Dimensions（W*D*H）(mm): 3U（19"），483*404*130
The main parameters
| Specifications | ||
| Model: | BTS4000-10V3A | SN: CT-4008-10V3A |
| Items | Values | |
| Voltage | CV output range | 0.05V~10V |
| Min discharge voltage | 2.5V | |
| Accuracy | ± 0.05% of FS | |
| Current | Output range/channel | 0.015A~3A |
| Accuracy | ± 0.05% of FS | |
| CV cut-off current | 6mA | |
| Current response time | Max rising time: 1ms (10%FS~90%FS) | |
| Data record Frequency | 10Hz | |
| Charge modes | CC,CV,CCCV,CP | |
| Discharge modes | CC,CP,CR,CV | |
| Min pulse width | 500ms | |
| DCIR Test | Supported | |
| Channels control mode | Independent control | |
| Channels per unit | 8 | |
| Dimensions（W*D*H）(mm) |
3U（19"），483*404*130
|
|
Product Highlights
High Accuracy: The Accuracy of CT-4008-10V3A is 0.1%.
Min Discharge Voltage: The common min discharge voltage of CT-4008-10V3A is 2.5V.
Data Record Frequency: The data record frequency of CT-4008-10V3A is 10Hz.
Protection: To make the safest products! Users, data and the testers are safe!
Channels feature: The channel controls independently. Kelvin connection.
Life Cycle Test: CT-4008-10V3A can do the cycle life test.
DCIR Test: CT-4008-10V3A can do the DCIR test.
Formation, Aging & Grading: CT-4008-10V3A can do formation, aging and grading.
dQ/dV Curve: CT-4008-10V3A can do dQ/dV curve.
C-Rate Test: CT-4008-10V3A can do C-Rate test.
HPPC Test: CT-4008-10V3A can do HPPC test.
PITT/GITT Test: CT-4008-10V3A can do PITT/GITT test.
Pulse Test: CT-4008-10V3A can do pulse test.
