CT-4008Tn-5V20mA

Voltage CV Output Range: 25mV~5V
Min Discharge Voltage: -5V
Current Output Range: 5μA-1mA; 1mA-10mA; 10mA-20mA
Accuracy: ± 0.05% of FS
Current response: Max rising time is 500μs (10%FS~90%FS)
Data Record Frequency: 10Hz
Channels Per Unit: 8
Dimensions（W*D*H）(mm): 1U(19″), 483*310*48

PDF

Product Description:

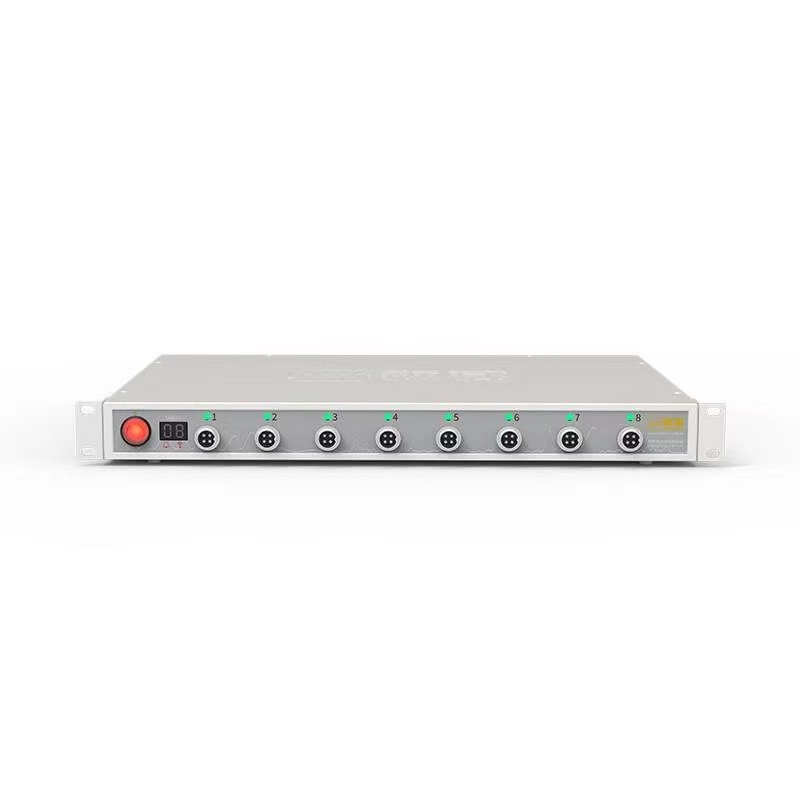

Neware CT-4008Tn-5V20mA is born for coin cell test. Students and researchers in universties and institutes just love this product, it’s the really star on their mind.

The newest Neware CT-4008Tn-5V20mA has 3 output ranges: 1mA(5μA-1mA) , 10mA(1mA-10mA) and 20mA(10mA-20mA) with accuracy 0.05%. The lower range is able to output current low as 5μA, which can tell the subtle difference of various materials such electrodes, electrolyte, sepatator, etc.

The newest CT-4008Tn-5V20mA is much more accurate and stable. Many students think Neware testers help them a lot in their battery research work and paper.

Neware CT-4008Tn-5V20mA needs to be used with a middle-machine. It likes our brain and it has 700M+ storage capacity. Then it offers you the off-line operation mode. For instance: If you want to take away the computer for a while, you don’t need to pause the test. Then the data will be stored in the middle-machine temporarily. The data will be automatically uploaded to the computer after the computer is reconnected again.
